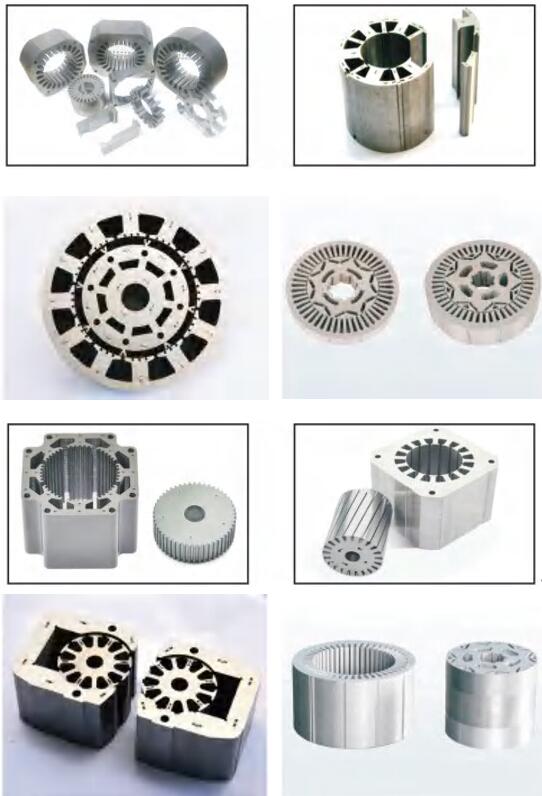

High Precision ,High Speed Press,Motor Core Lamination Press（DDH-Series）
Main performance characteristics:
® The internal oil circuit of the crankshaft is designed to restrain the thermal deformation of the crankshaft.
® The press has its own special technology to control the clearance.
® Adjustable gaskets to restore equipment accuracy with minimal cost.
® The frame pull rod and slide guide are integrated, and the structure is compact and reasonable. The slide guide is guided by ball, with high precision.
® Hydraulic locking rod, the stability can be maintained for a long time.
® The separate clutch brakes on both sides balance the force on the crankshaft and reduce bearing wear.
® The rigidity of the press frame shall be strictly controlled by 1/15000, and the frame material shall be strictly controlled by QT500-7.
Technical parameter
| Specifications | Unit | DDH-45 | DDH-65 | DDH-85 | DDH-125T | DDH-220T | DDH-300T | DDH-400 | DDH-500 |
| Press capacity | tons | 45 | 65 | 85 | 125 | 220 | 300 | 400 | 500 |
| Capacity occurring point | mm | 1.6 | 2 | 2 | 2 | 2 | 2 | 2 | 3.2 |
| Slider stroke length | mm | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 40 |
| Slider strokes per minute | s.p.m | 500-1800 | 500-1800 | 500-1800 | 300-1200 | 300-1200 | 300-900 | 80-250 | 60-150 |
| Bolster area | mm | 750*550 | 950*650 | 1100*750 | 1400*850 | 1900*950 | 2300*1000 | 2800*1200 | 3200*1500 |
| Bed opening | mm | 550*125 | 700*125 | 800*150 | 1100*200 | 1400*250 | 1900*300 | 2300*400 | 2700*400 |
| Slide area | mm | 750*380 | 950*420 | 1100*500 | 1400*600 | 1900*700 | 2300*1000 | 2800*1000 | 3200*1500 |
| Mode height adjustment stroke | mm | 240-290 | 300-350 | 330-380 | 360-410 | 370-420 | 400-450 | 460-520 | 500-550 |
| The mode height adjustment motor | kw | 0.4 | 0.4 | 0.75 | 0.75 | 1.5 | 2.2 | 3.7 | 3.7 |
| Outline Dimension | mm | 1810*1510*2665 | 2010*1660*2950 | 2180*1680*3405 | 2350*1800*3550 | 3060*1940*4505 | 3550*2100*5340 | 4260*2300*5585 | 4840*2330*5865 |
| Main motor | kw | 15 | 19 | 22 | 37 | 45 | 55 | 75 | 75 |
