Straight Side Unitized Frame Single Crank Servo Press Machine(STD-Series）

Short Description:

Send email to us Download as PDF

Product Detail

Product Tags

Main performance characteristics:

Main performance characteristics I:

1 ® High strength body structure, small deformation and high precision

2 ® The sliding block adopts 4 angle 8 face guide rail, and the sliding block guide rail adopts "high-frequency quenching" and "rail grinding process": low wear, high precision, long precision holding time, and improves the service life of the mold.

3 ® The crankshaft is made of high-strength alloy material 42CrMo. Its strength is 1.3 times that of 45 steel and its service life is longer.

4 ® The copper sleeve is made of tin phosphor bronze ZQSn10-1, and its strength is 1.5 times that of ordinary BC6 brass.

5 ® The use of highly sensitive hydraulic overload protection device can effectively protect the service life of the punch and die.

6 ® Standard Japanese SMC pressure regulating valve, lubricator, air filter.

7 ® The standard configuration is high-precision bearing and Japanese NOK seal.

8 ® 15.6 inch touch screen

9 ® Optional mold pad (air cushion).

10 ® The forced thin oil circulating lubrication device is adopted, which is energy-saving, environment-friendly, and has an automatic alarm function. The stamping speed can be increased by adjusting the amount of oil.

Main performance characteristics II:

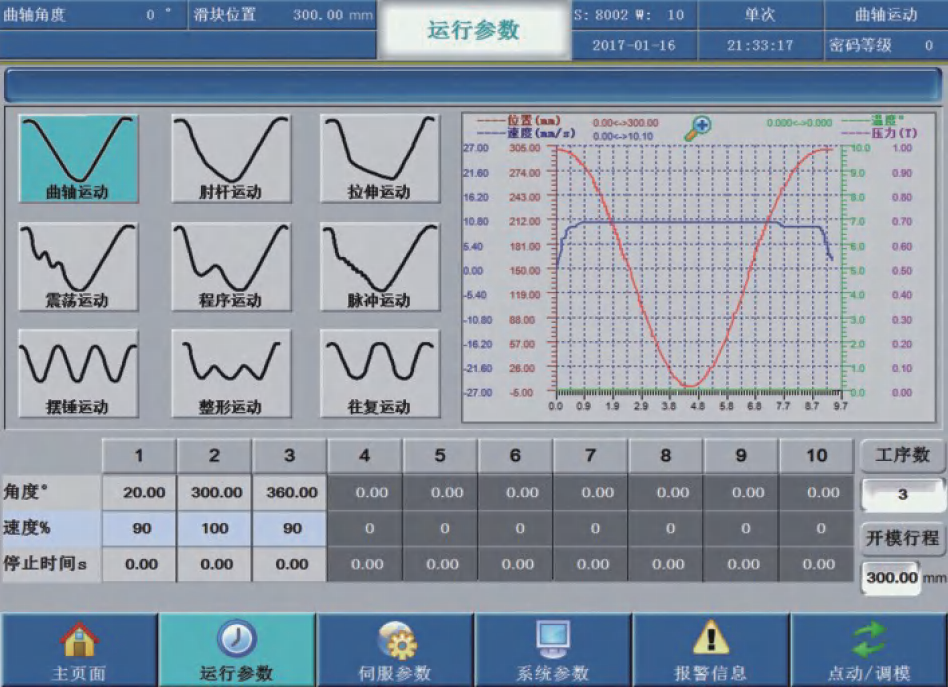

1 ® 9 processing modes are built-in, and each product can select the processing curve most suitable for component processing,So as to achieve high precision, high efficiency and high energy conservation.

2 ® Compared with traditional presses, it has simple structure, high mechanical transmission efficiency and low maintenance cost.

3 ® According to the characteristics of products/materials, the stamping forming speed can be reduced during the material processing to achieve the best forming speed of products/materials. Thus reducing vibration and stamping noise; Improve product accuracy and extend the service life of the mold.

4 ® According to different products, different heights are required. The stroke of the punch can be set arbitrarily, which greatly shortens the stamping time and improves the efficiency.

Standard configuration

1	Hydraulic overload protection device	9	Air blowing device
2	Servo motor（Adjustable speed）	10	Independent control cabinet
3	Digital die height indicator	11	Mis-delivery detection device reserved interface
4	Slider and mold balance device	12	Photoelectric safety protection device
5	Electronic cam switch device	13	Oil-gathering silencer
6	Prejudging counter	14	Electric grease lubrication device
7	Air source connector	15	Touch (pre-break, prejudge, total count)
8	Second falling protection device	16	Air cooled chiller

Optional Configuration

1	Pneumatic mold pad device	5	Feeder (air, mechanical and NC)
2	Thin oil lubrication device	6	Leveling machine
3	Quick die change device (Die lifter, die clamper or die mover)	7	Rack
4	Upper part hit material device of slider	8	Manipulator

Technical parameter

Name		Unit	STD-110sv	STD-160sv	STD-200sv	STD-250sv	STD-300sv	STD-400sv	STD-500sv	STD-600sv	STD-800sv
Press capacity		Ton	110	160	200	250	300	400	500	600	800
Impulse position		mm	5	5	5	6	6	6	7	8	9
Slider strokes per minute（S.P.M)	Swing mode	mm	~100	~100	~100	~75	~70	~70	~70	~70	~60
Slider strokes per minute（S.P.M)	Full stroke	mm	~60	~60	~60	~50	~40	~40	~40	~40	~35
Max die height		mm	450	450	450	500	550	600	650	650	650
Slider adjustment amount		mm	100	100	150	150	150	150	150	150	150
Slide size		mm	750*700	750*700	700*700	800*800	900*900	1000*1000	1200*1200	1300*1300	1400*1400
Bolster platform size		mm	750*800	850*800	900*900	1000*1000	1100*1100	1200*1200	1400*1200	1500*1300	1600*1400
Side opening		mm	700*500	700*500	700*500	700*600	700*600	900*650	900*650	900*700	900*700
Servo motor torque		Nm	4500	7500	12000	15000	21000	28000	37000	46000	65000
Air pressure		kg*cm²	6	6	6	6	6	6	6	6	6
Press accuracy grade		Grade	JIS 1	JIS 1	JIS 1	JIS 1	JIS 1	JIS 1	JIS 1	JIS 1	JIS 1
